Telecommunications Protection
Indicating Fuses & Holders
GMT-A
• The GMT-A is designed specifically for use in the Telpower®
series 15800 Fused Disconnect Switch (page 134).
• The GMT-A has the same ratings and agency approvals
as the standard GMT fuses as shown above.

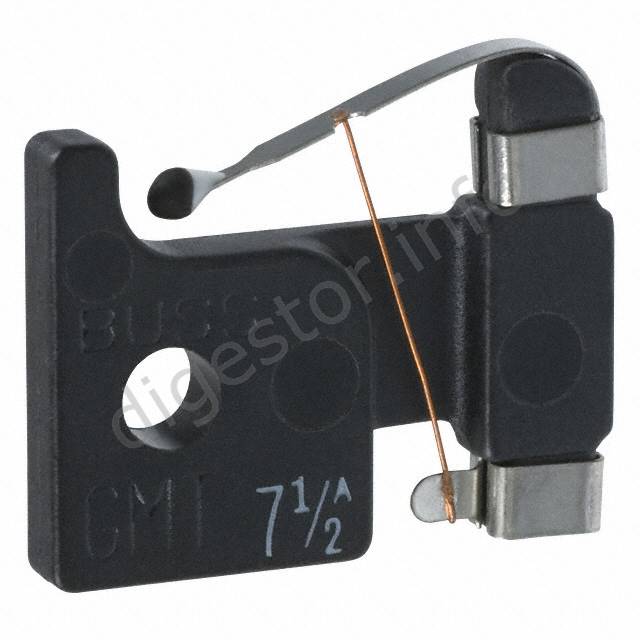

GMT
Fast Acting Fuses
Voltage Rating: 60V DC; 125V AC
Interrupting Rating: 450 Amps., 60 Volt DC;
300 Amps., 125 Volt AC
Agency Information:
UL Recognized, Guide JFHR2, File E56412
Materials:
Body: Thermoplastic, UL 94VO flammability rating
Terminals: Tin-plated Beryllium copper
Carton Qty. and Weight: 100 Fuses per carton;
0.33 lbs. (150g)

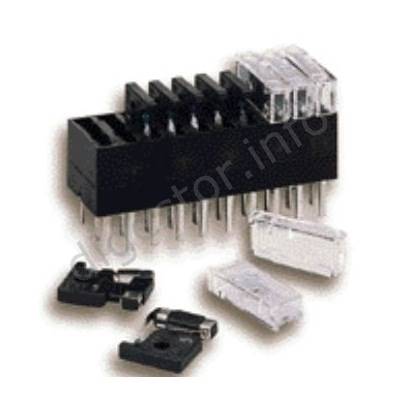

Fuseholders: Catalogue No. HLT, HLS, and PCT
Spare Fuseholder: TPSFH-T
